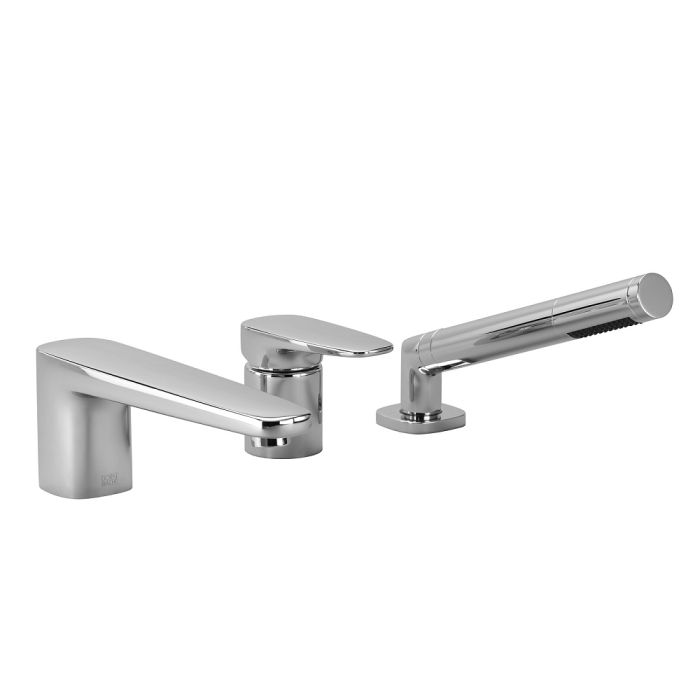

Dornbracht Gentle Three Hole Bath Mixer 27312720

Dornbracht Gentle Three Hole Bath Mixer 27312720



Three-hole single-lever bath mixer for bath rim or tile edge installation



· 200 mm projection

· Fixed spout

· M 24 x 1 aerator – male thread

· Back flow preventer in shower outlet

· 1x CU 12 mm outlet pipe, 170 mm

· xSTREAM cartridge with ceramic discs (42 l/min at 3 bar)

· Automatic bath/shower diverter

· Bar-type hand shower with anti-scale system and back flow preventer

· Metal shower hose 2250 mm, chrome-plated, consisting of 1 pc. high pressure hose 500 mm and 1 pc. · metal hose 1750 mm with turning cone

· 3x compression joint 12 mm x 1/2"

· Rosette for hand shower ø 58 mm x 58 mm

· Height of mixer 95 mm

· Height up to aerator 70 mm

· Hole diameter spout 32 mm

· Hole diameter deck valve/hand shower diverter 32 mm

· 1x CU connecting pipe 12 mm, 100 mm long

· 20° bend

· Guide for shower hose

· Max. hand shower flow 9 l/min



Optional Equipment:

· Perfecto Installation Kit 1/2" 1261097090

· Decorative Caps for Perfecto Installation Kit 12801970
