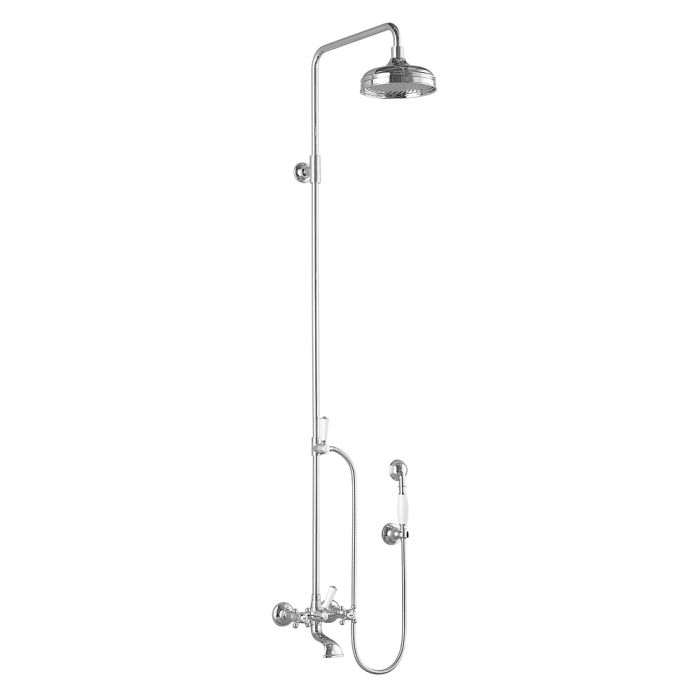

Dornbracht Madison Bath Mixer with Shower 25603360

Dornbracht Madison Bath Mixer with Shower 25603360



Bath mixer for wall mounting, with shower with fixed riser



· Shower with fixed riser projection 420 mm

· Bath spout projection 160 mm

· Unrestricted flow

· Back flow preventer in shower outlet

· 1x 1/2" ceramic head part

· Shower with fixed riser/hand shower diverter

· Bath/shower with fixed riser diverter

· Hand shower with back flow preventer

· 200 mm diameter rain shower with anti-scale system

· 1250 mm shower hose with turning cone at both ends

· Rosette bath mixer ø 65 mm

· Wall mounting rosette ø 60 mm

· Rosette wall bracket ø 66 mm

· Height of fittings up to top edge of elbow 1630 mm

· Height of fittings up to rain shower (bottom edge) 1470 mm

· Gauge 150 mm

· Concealed 1/2" x 3/4" S connectors (noise reduced)

· 2x wall attachment: height adjustable, distance can be adjusted

· Max. hand shower flow 9 l/min

· Max. rainshower flow 9 l/min

· A slide unit for the hand shower can be fitted to the riser on request.

· Intrinsic protection against back flow.
