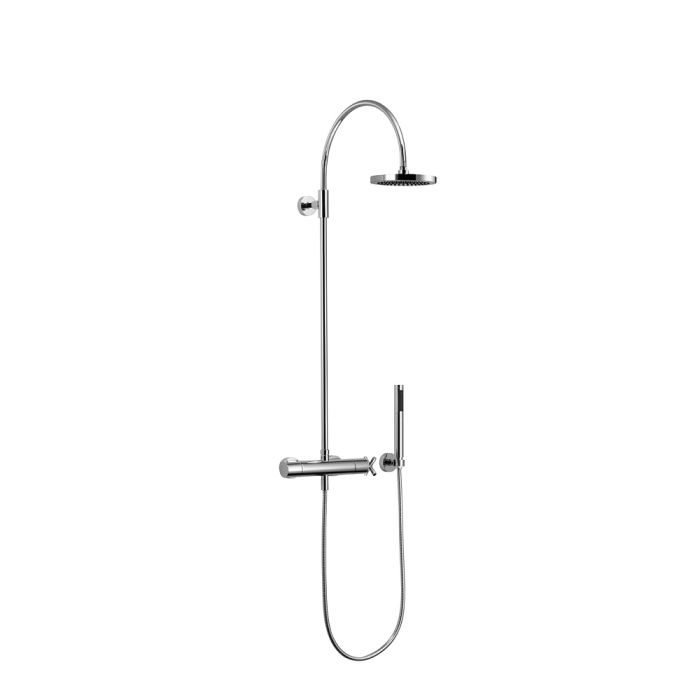

Dornbracht Meta.02 Shower Thermostat 34457892

Dornbracht Meta.02 Shower Thermostat 34457892



Shower thermostat for wall mounting, with fixed riser, with hand shower set, 1/2", Ø 220 mm



· Shower with fixed riser projection 420 mm

· Integrated back flow preventer and filters

· 1/2" thermostat cartridge

· Diverter cartridge with ceramic discs

· Bath/shower diverter with volume control

· 1x 1/2" ceramic head part

· Bar-type hand shower with anti-scale system and back flow preventer

· 220 mm diameter rain shower with anti-scale system

· 3/8" shower outlet

· Rosette wall bracket ø 57 mm

· Slide-on rosettes ø 60 mm

· 3/8" x 1/2" x 1250 mm shower hose with turning cone

· Regulator handle

· Concealed 1/2" x 3/8" S connectors (noise reduced)

· Height of fittings up to top edge of elbow 1170 mm

· Gauge 150 mm

· Height of fittings up to rain shower (bottom edge) 852 mm

· Max. rainshower flow 12 l/min

· Max. hand shower flow 9 l/min

· Intrinsic protection against back flow.

· Slide bars available on request.



Optional Equipment:

· Circular shower rail for showers with fixed riser 12550979

· Shower Curtain 84651970

· Shower basket for subsequent mounting on riser 82290970
