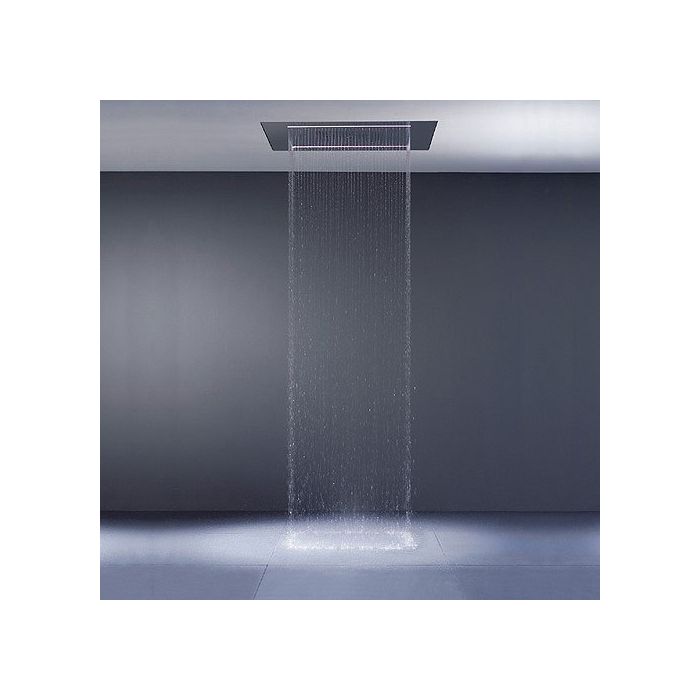

Dornbracht RAIN SKY M Rain Panel Shower Head 41100979

Dornbracht RAIN SKY M Rain Panel Shower Head

For ceiling installation

41100979
From £9,614.93 Regular Price £11,311.68
In stock
Only %1 left
Dornbracht RAIN SKY M Rain Panel Shower Head 41100979



RAIN SKY M rain panel for ceiling installation, manual control



· Head spray 200 x 160 mm, 99 nozzles

· Body spray 360 x 280 mm, 142 nozzles

· Rain curtain 720 x 520 mm, 124 nozzles

· Cover plate, stainless steel 1020 x 820 x 2 mm

· 3x flexible connection hose 1/2" – female thread

· 4x M 10 heavy-duty bolt

· Pre-fitted, stainless steel enclosure 990 x 790 x 128 mm

· 2 light gaps, electronic ballast, T 5 fluorescent tubes, 39 watts - light colour 830

· 2 hinges and safety chains



Technical data

· Minimum flow rate: 35 l/min (all three rain modes together)

· Flow at 3 bar flow pressure in conjunction with xTOOL: 43 l/min

· Minimum flow pressure: 2 bar

· Max. flow pressure: 4 bar

· Weight: 50 kg

· Electricity supply: 220-240 V AC/DC, OHz, 50-60 Hz, 88 W

· System of protection: IP 65



Planning information



- Plumbing

· Recommended water hardness: 6-7 °dH - if the water is harder, integrate a water softener that uses the ion exchange principle into the feed pipe.

· For the optimum choice of hot water storage device - taking into consideration additional drawing-off points and the frequency with which RainSky M is used - the specific demand needs to be assessed. Recommendation: storage capacity of at least 500 l.

· For choosing the drainage, taking into consideration the discharge of all the products in the shower, the specific demand needs to be assessed. Recommendation: Floor drain (connected rating) = 1.5 l/sec, drainage rate DN 70

· Feed pipe (hot/cold): 2 x DN 20

· The manual control by xTOOL with three valves and an out for additional valves (for hand shower) needs to be ordered separately (35 546 970 90 or 35 548 970 90).



- Electrical

· Earth-leakage circuit-breaker 30 mA provided

· Feeder 3 x 1.5 mm2 NYM

· Equipotential bonding 1 x 4 mm2

· Customer must provide a light switch outside the shower area (outside safety zone 2 under DIN VDE 0100, Part 701)



· Detailed planning information and technical data can be found in TechniPlan at www.dornbracht.com.
