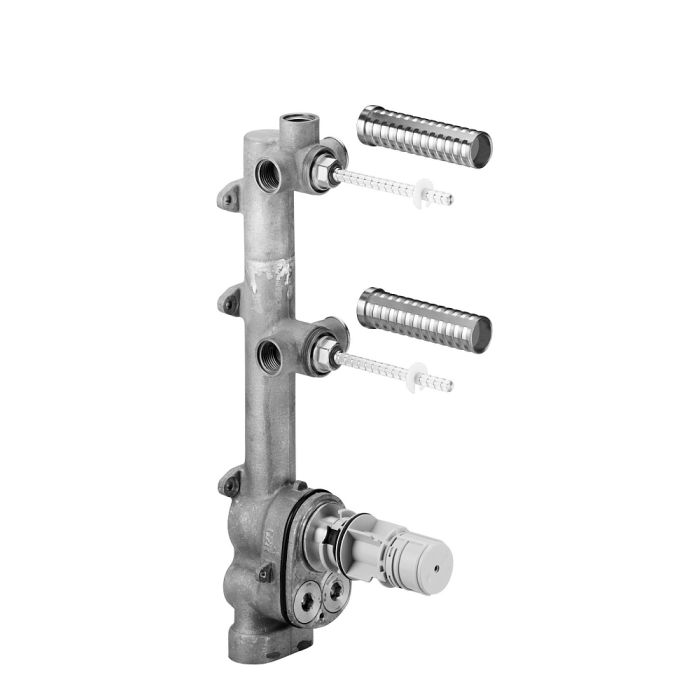

Dornbracht Concealed 2-Valve Thermostat Module 3552697090
Dornbracht Concealed 2-Valve Thermostat Module
3552697090
3552697090
Special Price £1,412.50 Regular Price £1,661.76
In stock
Dornbracht Concealed 2-Valve Thermostat Module 3552697090
xTOOL thermostat module with 2 valves
Concealed Rough Parts
· 2x back flow preventer
· Concealed body, red brass body
· 2x female thread 3/4" connections (cold/hot)
· 1x female thread 1/2" outlet, right/left alternatively
· 1x female thread 1/2" outlet, left/right/top alternatively
· 2x sleeve, for shortening
· 2x ceramic head part 1/2", with spindle for shortening
· 3/4" thermostat cartridge with filters
· Polystyrene block
· 3x anti-water packing
· 3x dust cover
· Integrated silencer
· Gauge 120 mm
· Can only be combined with exposed trim parts 36 416 SSS-FF or 36 310 SSS-FF
