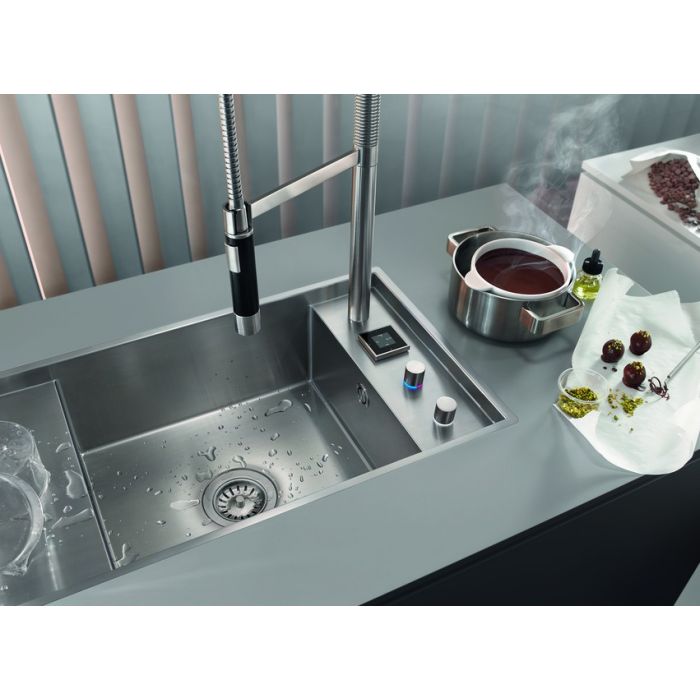

Dornbracht eUNIT KITCHEN electronic functional unit 41271875

Dornbracht eUNIT KITCHEN electronic functional unit, integrated into the sink 41271875



· Spout, projection 240 mm

· pivotable spout 360°

· Laminar and spray flow

· Max. flow 8 l/min at 3 bar flow pressure

· Intrinsic protection against back flow

· electronic controls (display switch and 2 twist controllers), pre-installed

· electronic strainer waste

· ready-to-use control unit for wall mounting (250 mm x 135 mm x 60 mm)

· Foot sensor for starting and stopping the flow of water, contact-free, incl. holder

· 2 pressure hoses, 3/8 x 1/2 threads x 500 mm

· 100-240 V, 50-60 Hz, 18 W power supply unit, incl. country-specific adapter set

· lead-free



Single sink

· Single sink with drainer and lowered tap hole bank, 1110 mm x 405 mm

· Stainless steel, material thickness 1.5 mm

· Installation, on top or flush

· Complete pop-up waste and overflow set with valve bridge

· 3 1/2" closable strainer basket valve



Technical data

· Minimum flow pressure 2.5 bar

· Max. flow pressure 4 bar



Planning information

· Earth-leakage circuit breaker recommended

· Earthing cable provided by customer
