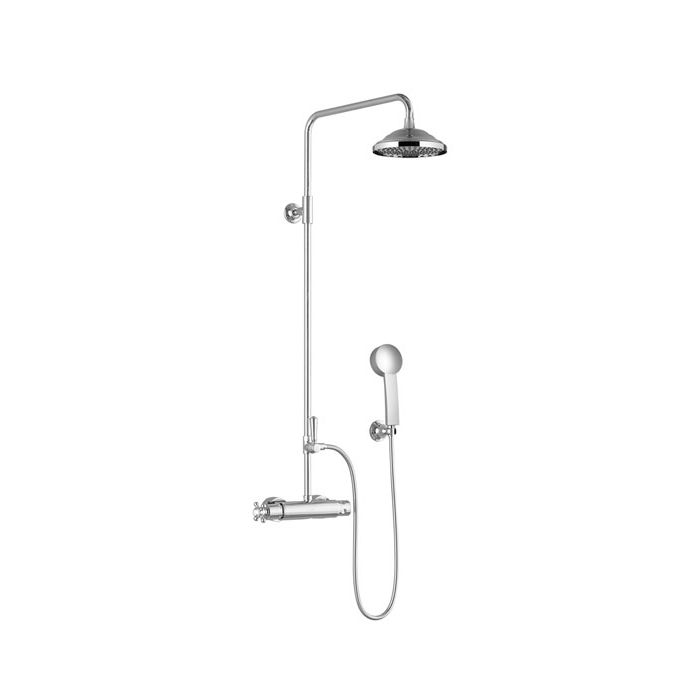

Dornbracht Madison Shower Thermostat with Hand Shower 34455970

Dornbracht Madison Shower Thermostat with Hand Shower 34455970



Shower thermostat for wall mounting, with fixed and hand shower, 1/2"



· Shower with fixed riser projection 420 mm

· Fixed spout

· Regulator and stop valve with 1/2" ceramic discs

· Shower with fixed riser/hand shower diverter

· Hand shower with three settings with anti-scale system

· 200 mm diameter rain shower with anti-scale system

· Outlet G 1/2"

· Wall bracket

· Two-part push-on rosette ø 65 mm

· Wall mounting rosette ø 60 mm

· 1250 mm shower hose with turning cone at both ends

· Without temperature control handle

· Concealed 1/2" x 3/4" S connectors (noise reduced)

· Height of fittings up to top edge of elbow 1160 mm

· Height of fittings up to rain shower (bottom edge) 975 mm

· Gauge 148 mm

· Wall attachment: height adjustable, distance can be adjusted

· Max. rainshower flow 9 l/min

· Max. hand shower flow 9 l/min

· Intrinsic protection against back flow.

· A slide unit for the hand shower can be fitted to the riser on request.



Optional Equipment:

· Circular Shower Rail for Showers with Fixed Riser 12550977

· Shower Curtain 84651970

· Shower Basket for Subsequent Mounting on Riser 82290970
