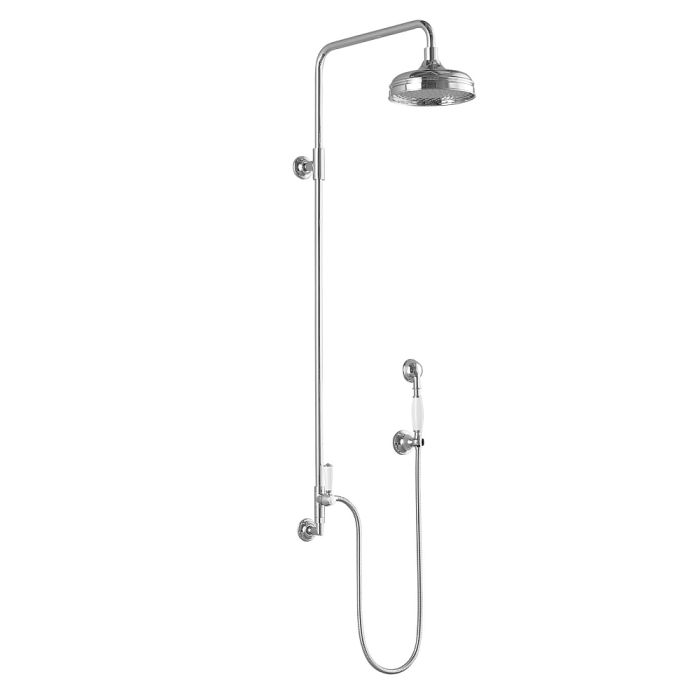

Dornbracht Madison Shower with Fixed Riser 27603360

Dornbracht Madison Shower with Fixed Riser and Wall Elbow 27603360



· Shower with fixed riser projection 420 mm

· Hand shower with back flow preventer

· 200 mm diameter rain shower with anti-scale system

· Special wall elbow with back flow preventer

· 1250 mm shower hose with turning cone at both ends

· Rosette wall bracket ø 65 mm

· Wall mounting rosette ø 60 mm

· Max. rainshower flow 9 l/min

· Max. hand shower flow 9 l/min

· Height of wall elbow up to top edge of elbow 1240 mm

· Height of wall elbow up to shower (bottom edge) 1080 mm

· Intrinsic protection against back flow.

· A slide unit for the hand shower can be fitted to the riser on request.



Optional Equipment:

· Circular Shower Rail for Showers with Fixed Riser 12550977

· Shower Curtain 84651970

· Shower Basket for Subsequent Mounting on Riser 82290970
